Adding domain services

A service is an IP/host, port and protocol combination that accepts client requests.  A service created at the Domain-level is used by User accounts created within the specific Domain.

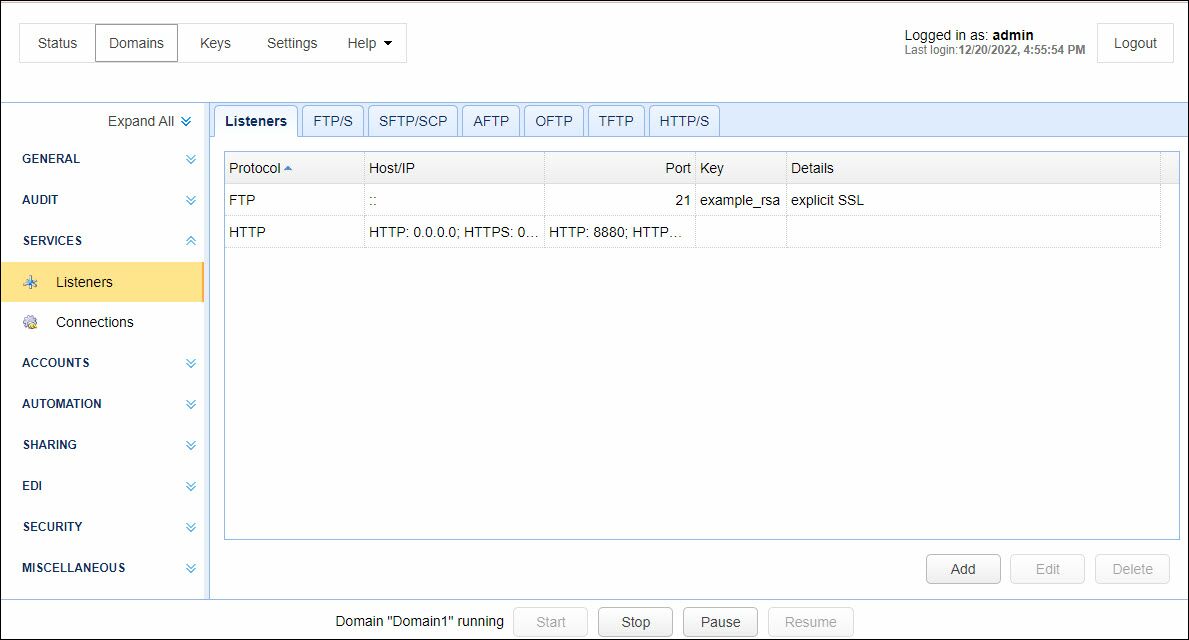

To view existing services for a Domain, click Domains, select the desired Domain, then navigate to the SERVICES > Listeners module.  A list of services displays.







Below you will find a description of the columns in the Listeners grid.



Protocol — Identifies the service protocol. Available protocols are AFTP, Agent, AS2, FTP/S, HTTP/S, OFTP2, SFTP/SCP, TFTP, and WebDAV/S.



Host/IP — Identifies the IP address where the service listens.



Port — Identifies the port used for communication.



Key — Identifies the encryption key the service uses for encrypted communications.



Details — Identifies additional details for the service.



Service types



AFTP — Accelerated File Transfer Protocol developed by JSCAPE. It runs on top of the UDP protocol. It provides fast file transfers over networks with high latency or packet loss characteristics.



Agent — Accepts connections from remotely installed MFT Server Agents.



AS2 — Accepts incoming AS2 messages.



FTP regular — Accepts standard unencrypted FTP connections.



FTP explicit SSL — Accepts both standard unencrypted FTP connections and encrypted explicit SSL connections using AUTH TLS or AUTH SSL client commands.



FTP forced explicit SSL — Accepts only encrypted explicit SSL connections using AUTH TLS or AUTH SSL client commands.



FTP implicit SSL — Accepts only encrypted implicit SSL connections.



HTTP/S — Accepts HTTP and/or encrypted HTTPS connections.



OFTP2 -— Accepts incoming Odette File Transfer Protocol (OFTP2) connections.



SFTP/SCP — Accepts encrypted SFTP (FTP over SSH) connections and Secure Copy (SCP).



TFTP - Accepts Trivial File Transfer Protocol (TFTP) connections.



WebDAV/S — Accepts WebDAV connections.



Add service



For information how to add a specific service, click on the desired link below.



• Adding an AFTP service

• Adding an Agent Service

• Adding an AS2 service

• Adding an FTP/S service

• Adding an HTTP/S Service

• Adding an OFTP2 Service

• Adding an SFTP/SCP Service

• Adding a TFTP service

• Adding a WebDAV/S service



Edit service



To edit a service, select the service you wish to edit and click Edit.



Delete service



To delete a service, select the service you wish to delete and click Delete.
