Viewing domain status

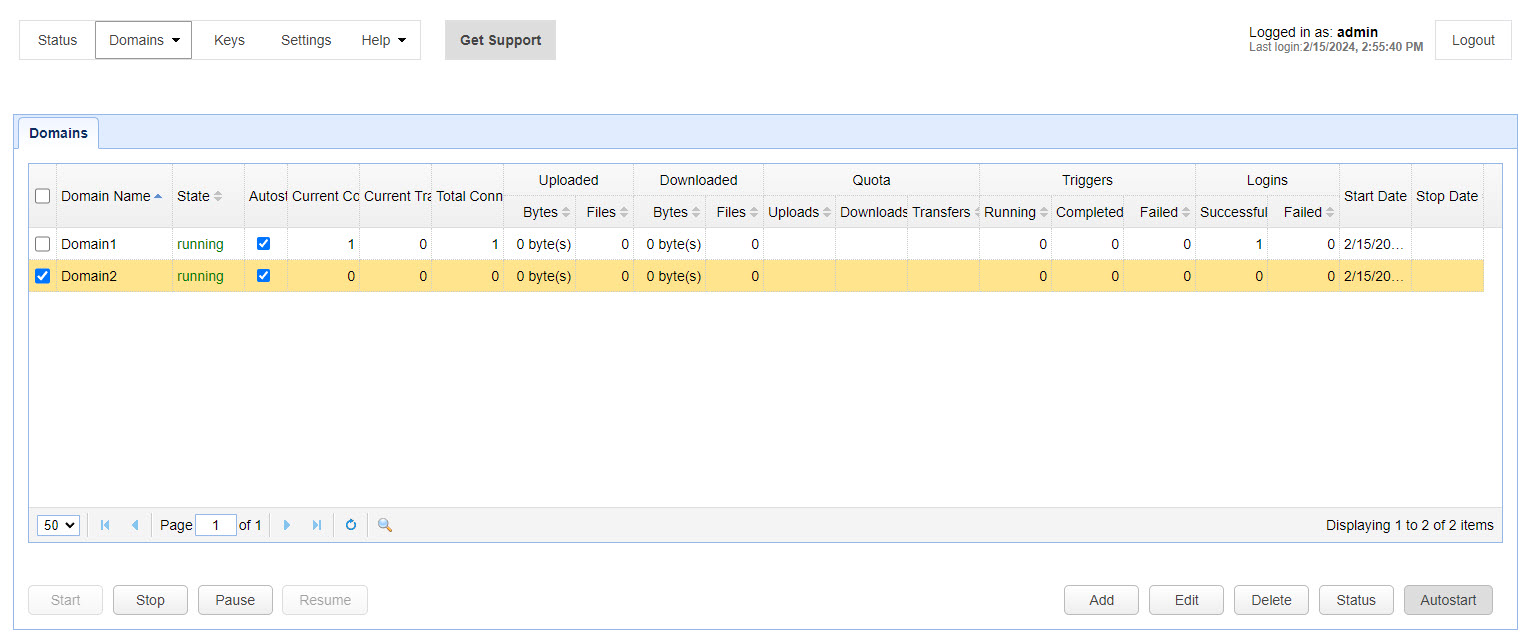

You can view the status information of a domain by accessing the desired domain in the Domains grid. Navigate to Domains > View domains, which will pull up the Domains grid, depicted in the image below. From there, select the domain you wish to view the status for. Click the Status button located in the lower right of your screen.  A window will pop up providing information about the domain's statistics and sessions, which is the same data displayed in the domain's GENERAL > Overview module. Additionally, the Status button displays the domain's log data, which is the same data displayed in the domain's AUDIT > Logging > Running tab. See View log data.





Domain Grid Column Descriptions



Domain Name - The name of domain.



State - Indicates current status of domain as running or stopped.



Autostart - Indicates whether the domain is set to start automatically upon startup



Current Connections - The current number of client sessions connected to domain.



Current Transfers - The current number of file transfers in progress.



Total Connections  - The total number of client sessions since start date.



Uploaded Bytes - The total number of bytes uploaded since start date.



Uploaded Files - The total number of files uploaded since start date.



Downloaded Bytes - The total number of bytes downloaded since start date.



Downloaded Files - The total number of files downloaded since start date.



Uploads Quota - The current upload quota if upload quota is enabled.



Downloads Quota - The current download quota if download quota is enabled.



Transfers Quota - The current transfer quota if transfer quota is enabled.



Running Triggers - The total number of triggers that are currently running.



Completed Triggers - The total number of triggers that have completed since start date.



Failed Triggers - The total number of triggers that have failed since start date.



Successful Logins - The total number of logins that succeeded since start date.



Failed Logins - The total number of logins that failed since start date.



Start Date - The date/time server was started.



Stop Date - The date/time server was stopped.



Search for a domain

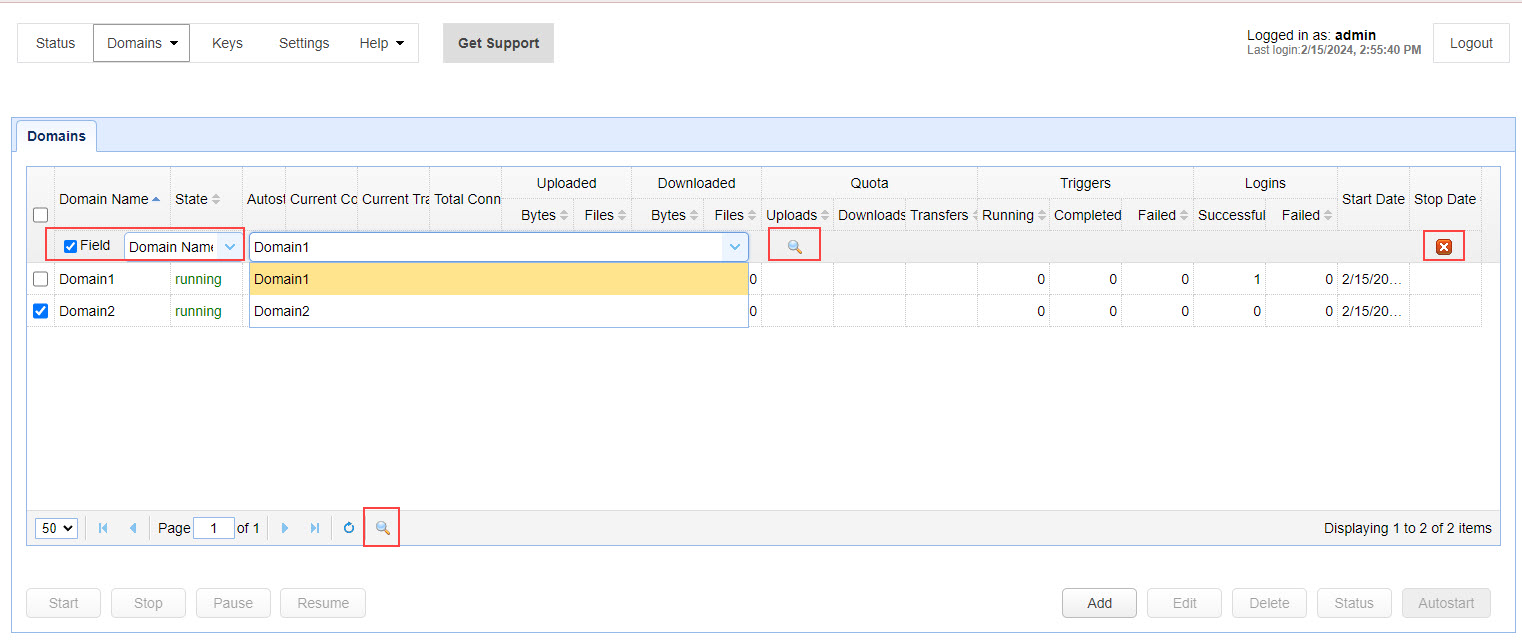

If you have configured many domains, you may find using the search feature convenient to locate the desired domain in the grid. See the image below.





To initiate the search, click on the bottom-most search icon. The search fields will placed under the column headings. After configuring your search criteria (field name and value), click on the top-most search icon to execute the search. The system will return the search match(es) in the grid. If there are no matches, the grid will be empty. To remove the search filter, click on the red icon to the far right.
