ICAP settings and violations

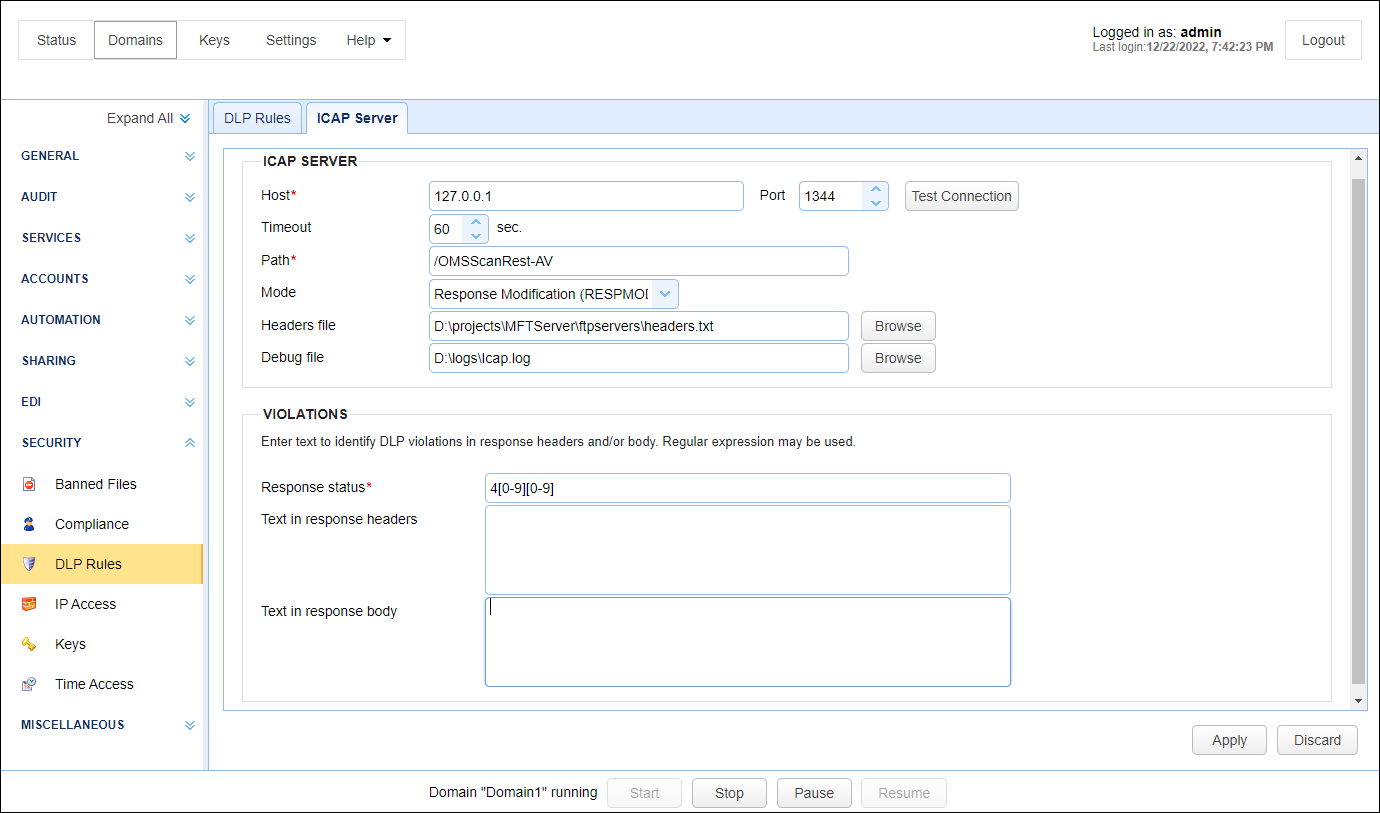

MFT Server may be configured to act as a DLP client that uses an ICAP server to determine whether content violates any DLP rules. To configure this, navigate to SECURITY > DLP Rules, then select the ICAP Server tab.



ICAP Server



Host - The hostname or IP address of the ICAP server



Port - The port number of the ICAP service. The default port is 1344



Timeout - The timeout value in seconds



Path - The path of the resource being requested



Mode - REQMOD or RESPMOD



  • REQMOD or Request Modification mode - Use this mode if you want MFT Server to send an HTTP request to the ICAP server

  • RESPMOD or Response Modification mode - Use this mode if you want MFT Server to send an HTTP response to the ICAP client



Headers file - The local path of a file that contains the header fields and corresponding field values.



Debug file - The local path of a file that contains the debug logs for ICAP-related events.



Violations



You can use this section to capture any DLP violations found in the ICAP server's response headers or response body. Regular expressions may be employed to match certain strings of text or patterns in the response headers and body that might indicate DLP violations.



clip0270
