JSCAPE SaaS vs. On-Prem - Functional Differences

The JSCAPE SaaS solution runs on top of Amazon Web Services (AWS). The Redwood team manages the MFT Server hardware and software.

Below, you will find a list of features that are not supported or not configurable by you when running JSCAPE SaaS in an environment. In many cases, the features not supported are to ensure a standardized, consistent, and reliable infrastructure. In other cases, you may see a specific reason described next to the listed feature.

In addition to this page listing all the functional differences, individual documentation pages display the icon depicted below when the feature is not configurable or applicable to JSCAPE SaaS. When you hover your mouse over the icon, a tooltip displays a message stating the feature is supported for on-prem environments only.

For on-prem environments only

Each unsupported or unconfigurable JSCAPE SaaS feature is identified by specifying its location in the MFT Server Admin UI. When the location starts with "Domain," it is a domain-level feature. When the location starts with "Settings," it is a global feature. It is also a global feature when the location starts with Keys. The Domain features are listed first, followed by the Settings features, and ending with the Keys features. If you wish to see an image associated with the listed feature, click the link provided for the feature in question.

Note: There is one functional difference associated with the MFT Server Web Client. It is described after the Keys features.

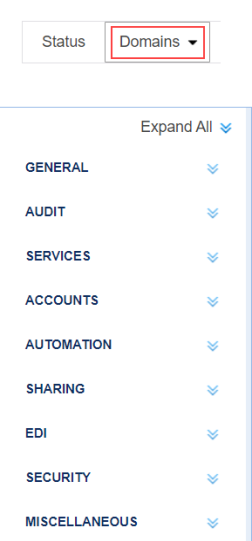

After you select a Domain, left-side menu options display, as shown in the image below.

The Domain features not supported or not configurable are listed in the same order as the above menu options are displayed (from top to bottom).

Domain Features

Domain > GENERAL > Overview > General > Limits

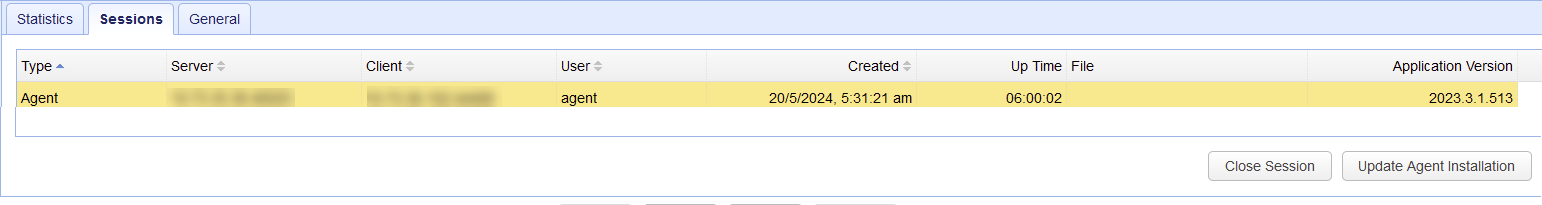

Domain > GENERAL > Sessions

The Update Agent Installation button is not supported.

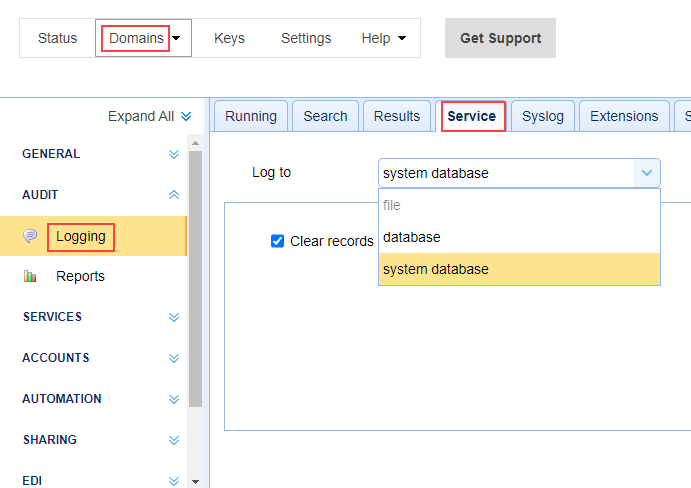

Domain > AUDIT > Logging > Service

The Log to field does not support the File option.
The Log to field does not support an Oracle database.

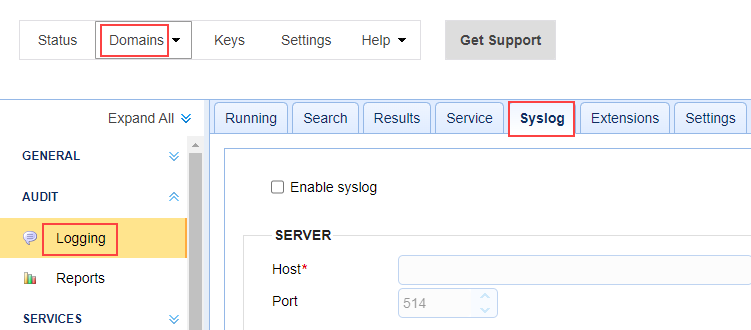

Domain > AUDIT > Logging > Syslog

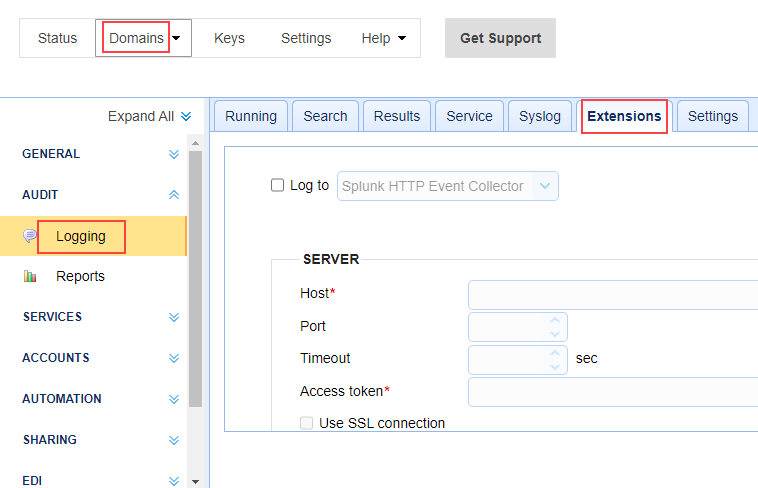

Domain > AUDIT > Logging > Extensions

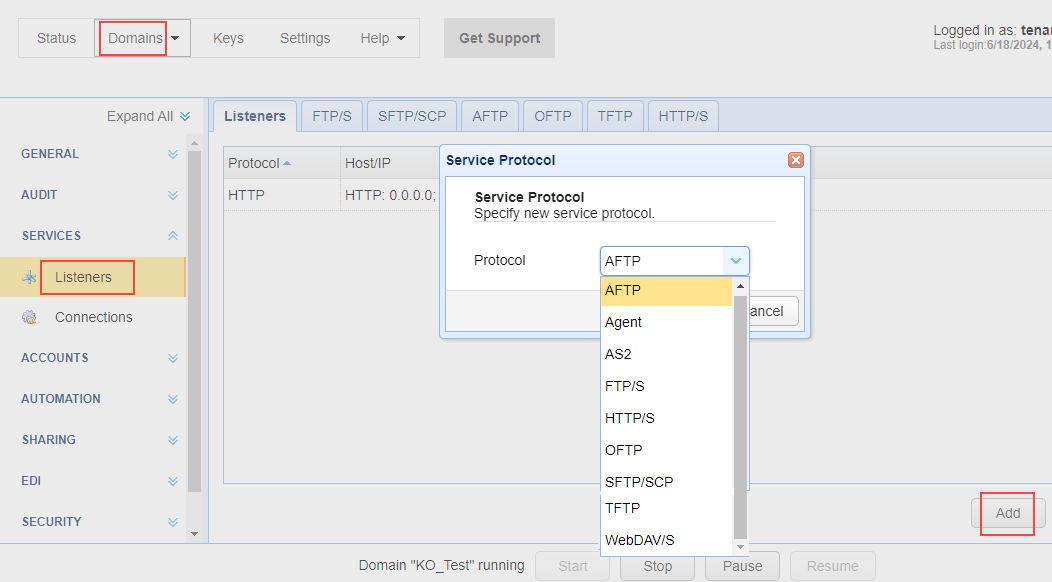

Domain > SERVICES > Listeners

The following protocols are not supported:

AFTP
FTP/S
TFTP
WebDAV/S

The following protocol is partially supported:

AS2 - JSCAPE SaaS supports AS2 Messages when using synchronous mode and HTTPS for inbound and outbound transfers.

The following is a requirement for the HTTP/S protocol - For the JSCAPE Web Client UI to function correctly, both HTTP and HTTPS protocols must be selected. However, the Client UI actually uses HTTPS.

Note: Protocol Listener Settings
For the following protocol listeners that are supported, the associated network ports are not modifiable:

HTTP and HTTPS: ports 80 and 443
SFTP: port 22
OFTP2: port 3305
Agent: port 40025
Gateway: port 30025

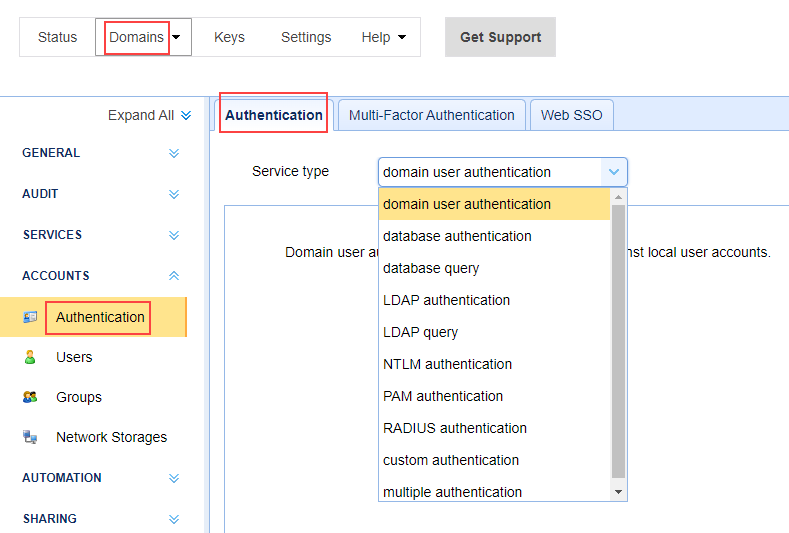

Domain > ACCOUNTS > Authentication > Authentication

The following Service types are not supported:

Database authentication
Database query
LDAP query
NTLM authentication
PAM authentication
RADIUS authentication
Custom authentication
Multiple authentication

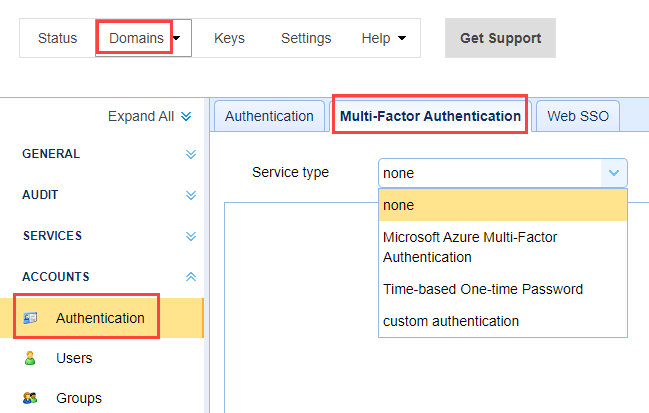

Domain > ACCOUNTS > Authentication > Multi-Factor Authentication

The following Service types are not supported:

Microsoft Azure Multi-Factor Authentication
Custom authentication

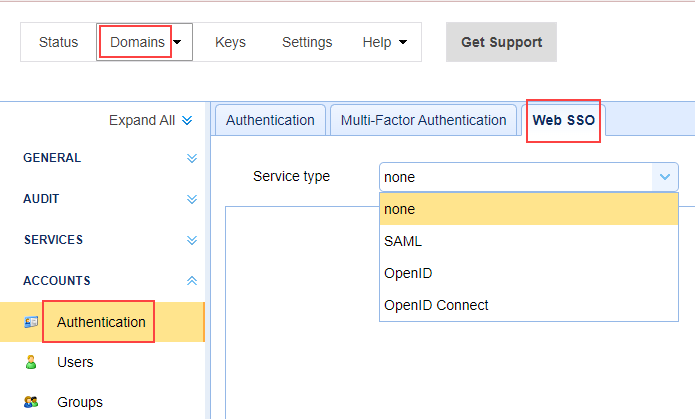

Domain > ACCOUNTS > Authentication > Web SSO

The following Web SSO type is not supported:

OpenID - It is not supported because it is obsolete.

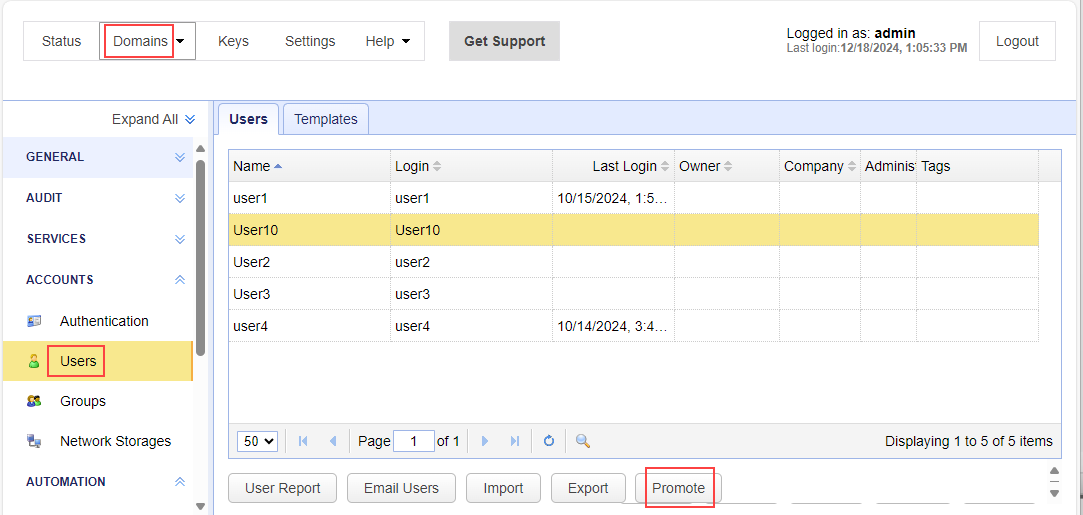

Domain > ACCOUNTS > Users > Users > Promote

Promote is not supported.

Domain > ACCOUNTS > Network Storage

The following protocols are not supported:

AFTP
FTP/S
TFTP
WebDAV

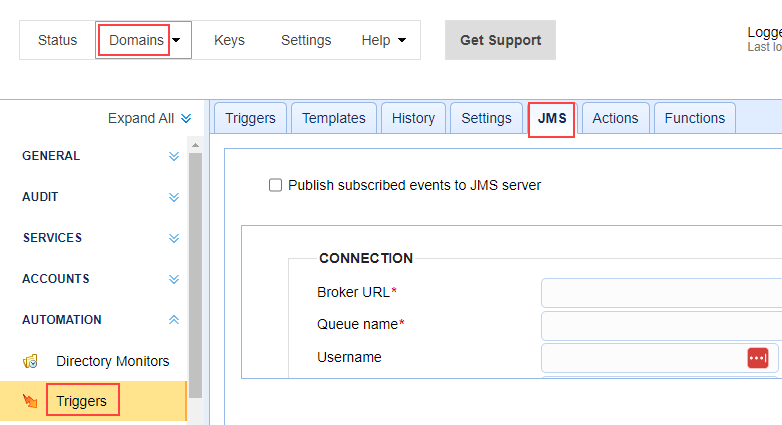

Domain > AUTOMATION > Triggers > JMS

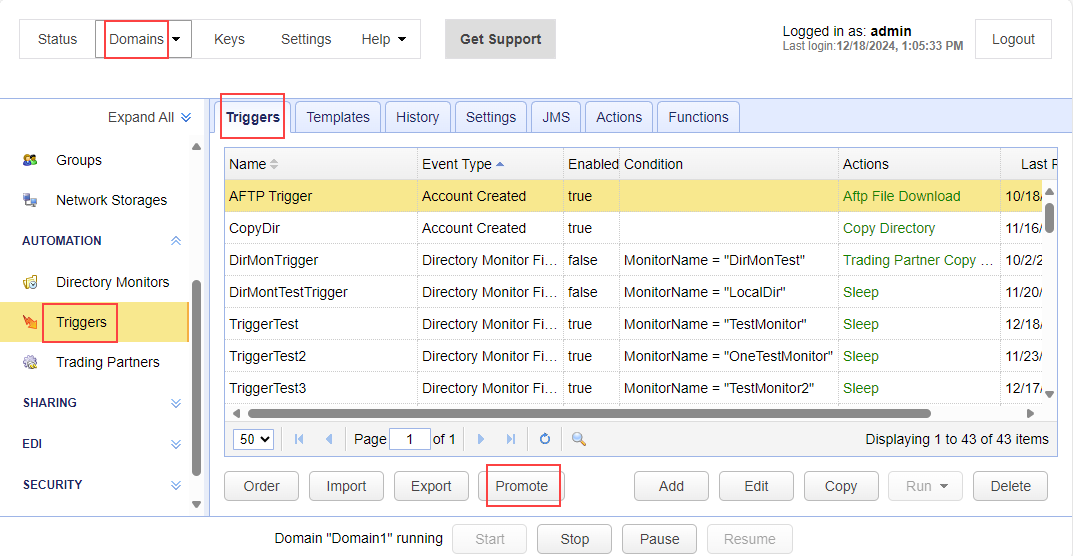

Domain > AUTOMATION > Triggers > Triggers > Promote

Promote is not supported.

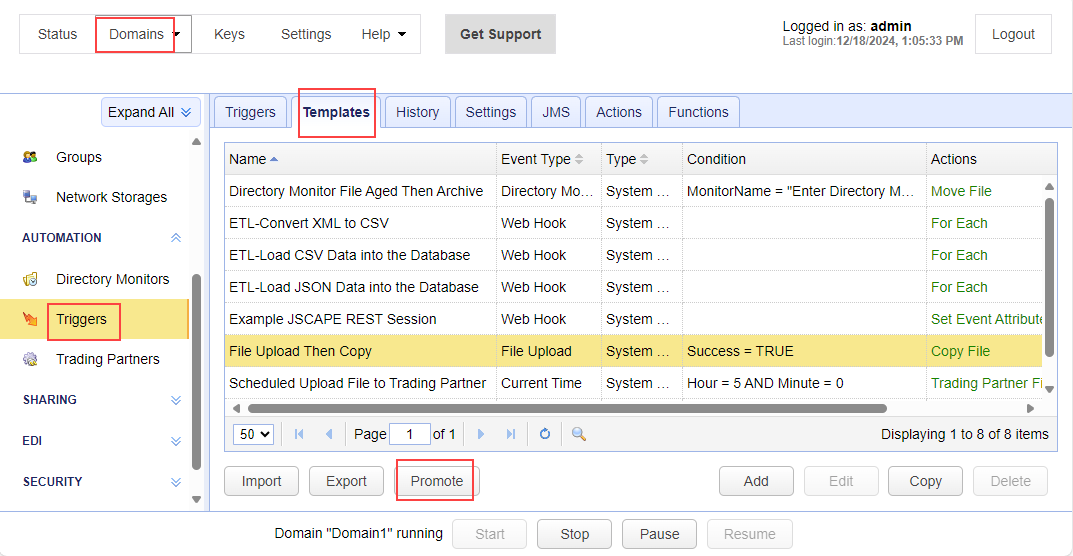

Domain > AUTOMATION > Triggers > Templates > Promote

Promote is not supported.

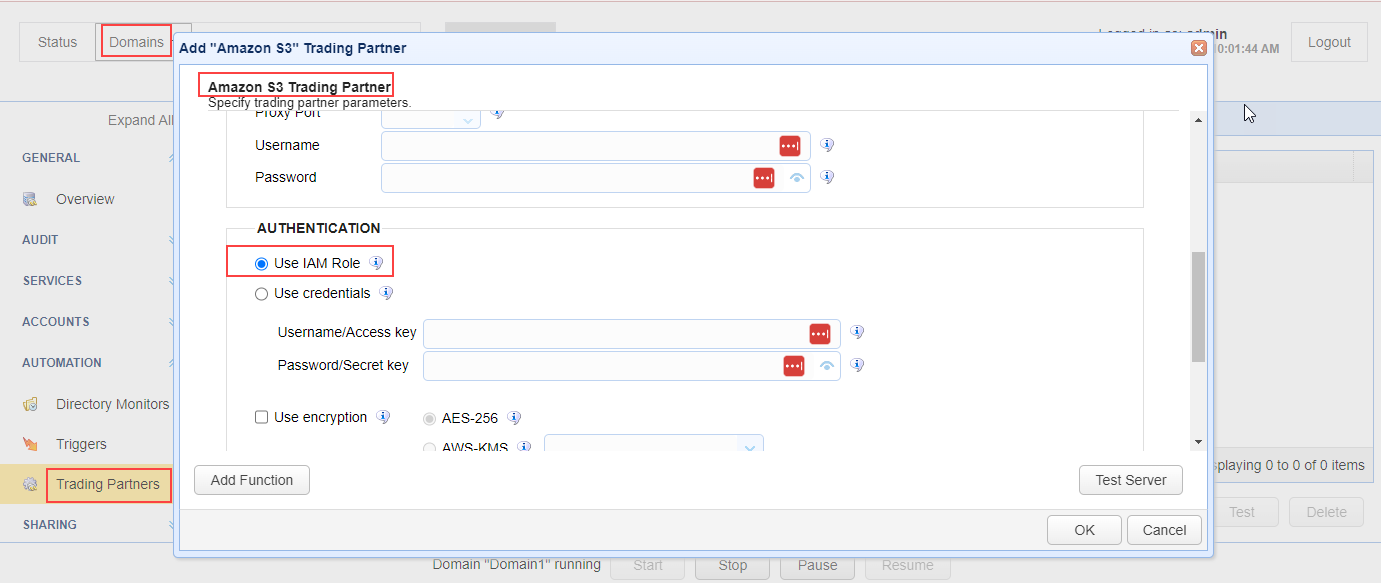

Domain > AUTOMATION > Trading Partners > Amazon S3

The Use IAM Role Authentication option is not supported.

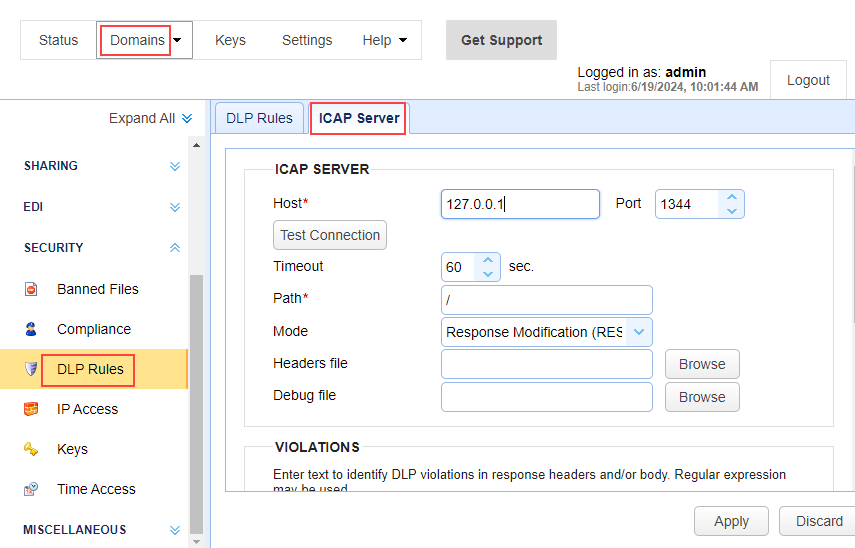

Domain > SECURITY > DLP Rules > ICAP Server

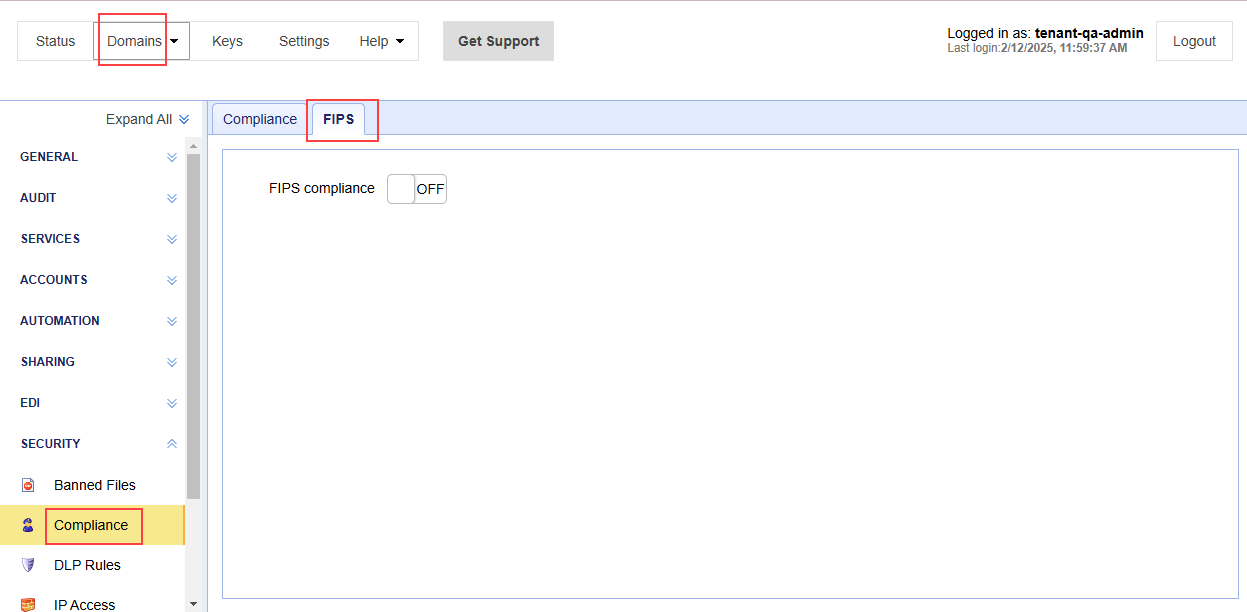

Domain > Security > Compliance > FIPS

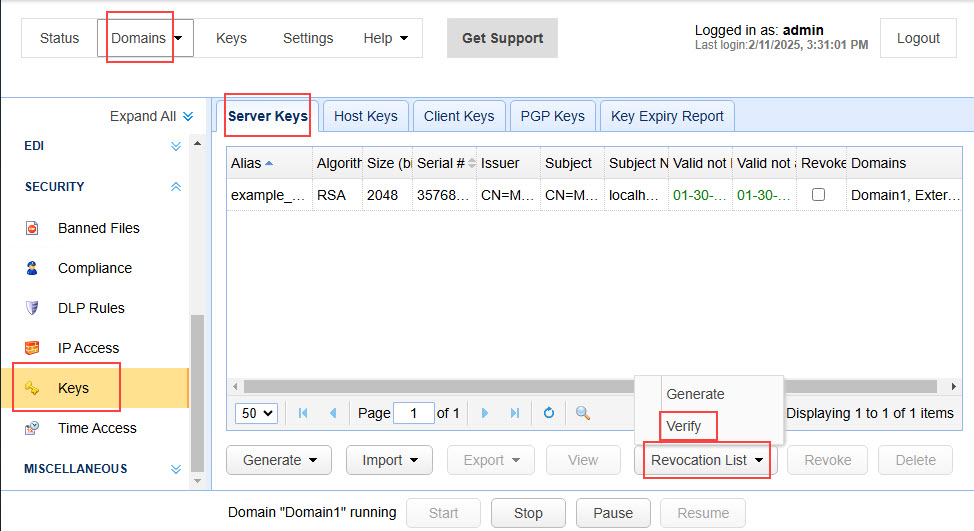

Domain > SECURITY > Keys > Server Keys > Revocation List > Verify

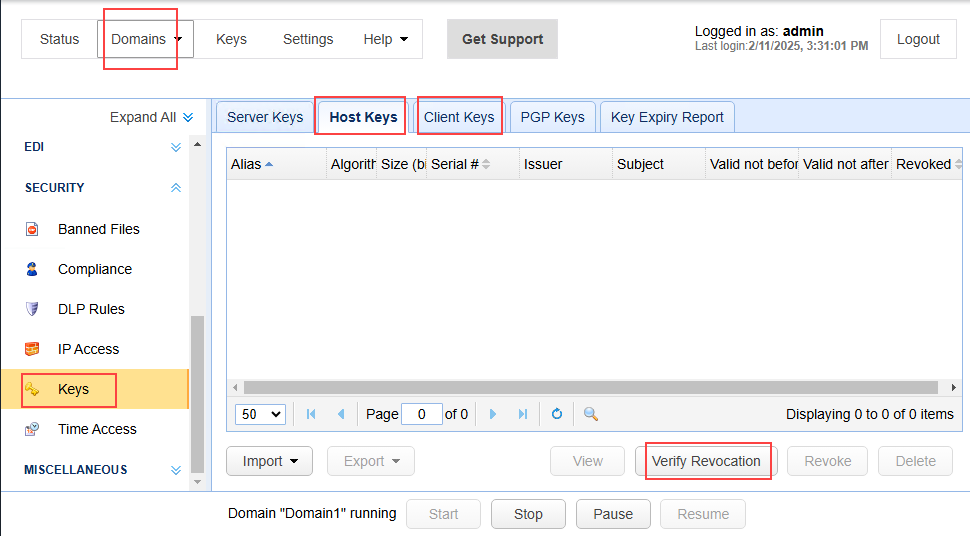

Domain > SECURITY > Keys > Host Keys and Client Keys > Verify Revocation

Settings features

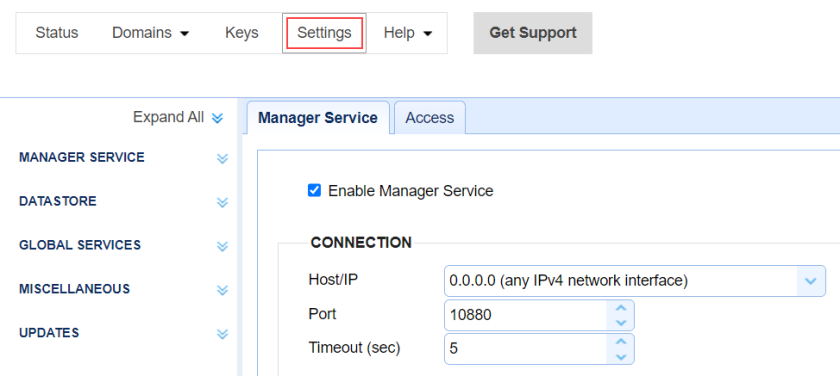

Next, if you click on the Settings button, left-side menu options display, as depicted in the image below.

Note: As stated below, DATASTORE and UPDATES are only visible in an on-prem JSCAPE SaaS environment

The Settings features not supported or not configurable are listed in the same order as the above menu options are displayed (from top to bottom).

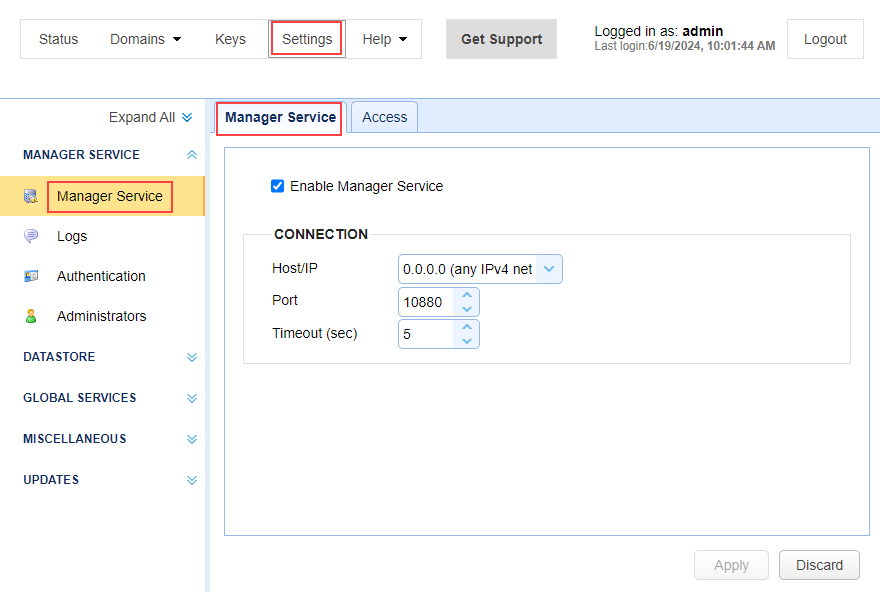

Settings > MANAGER SERVICE > Manager Service > Manager Service

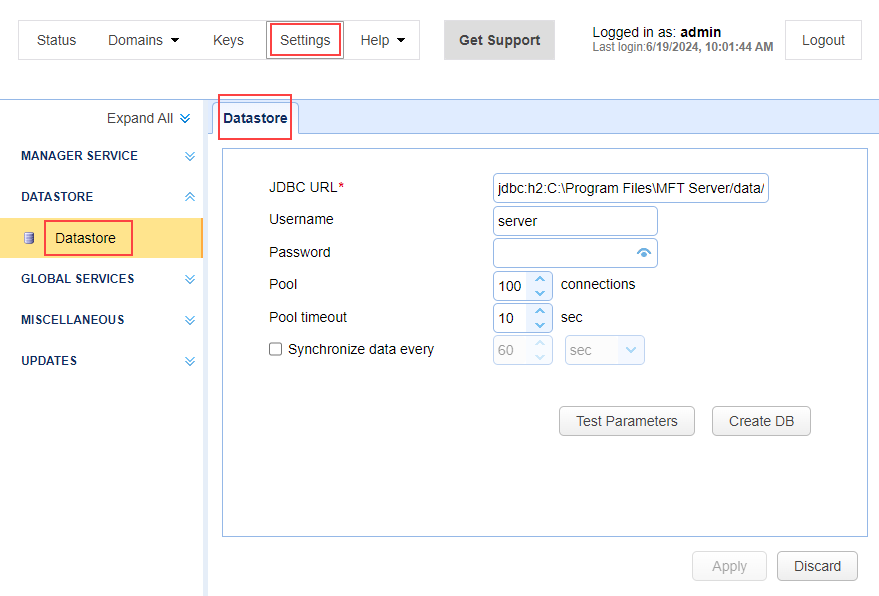

Settings > DATASTORE > Datastore - This option (the backend database used by MFT Server) cannot be modified and has been removed from the Admin UI.

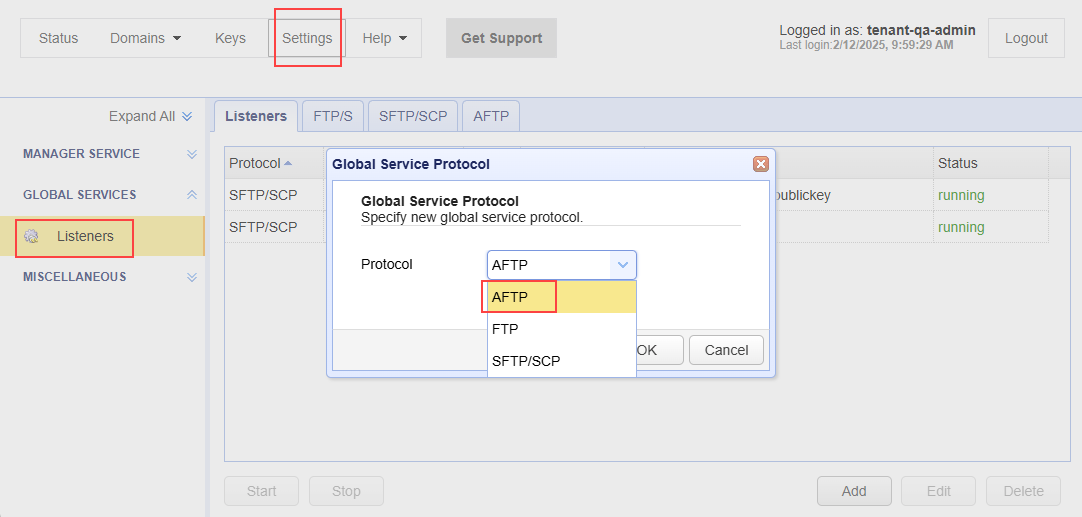

Settings > GLOBAL SERVICES > Listeners > Add > AFTP

Settings > GLOBAL SERVICES > Listeners > Add > FTP

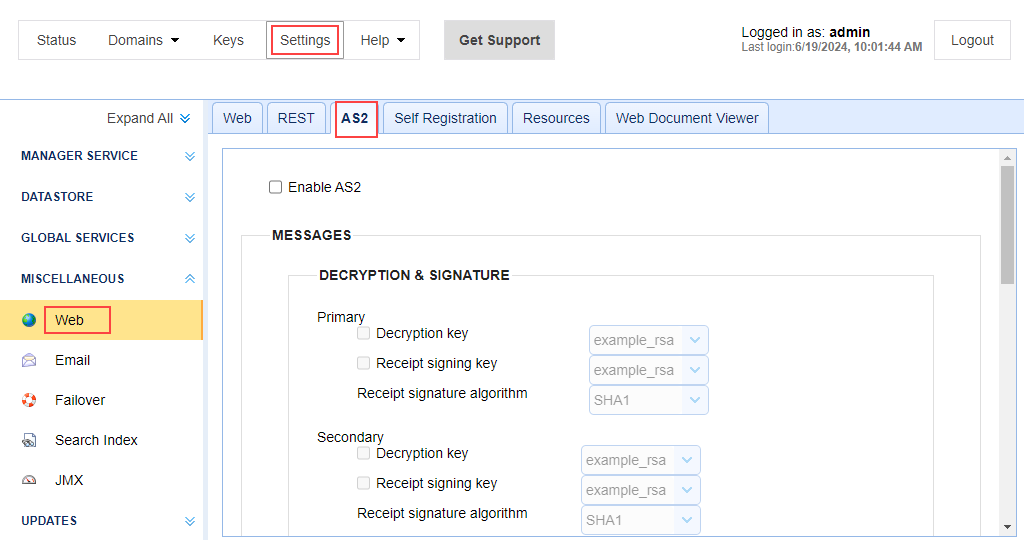

Settings > MISCELLANEOUS > Web > AS2 - This feature is supported when using synchronous mode and HTTPS for inbound and outbound transfers.

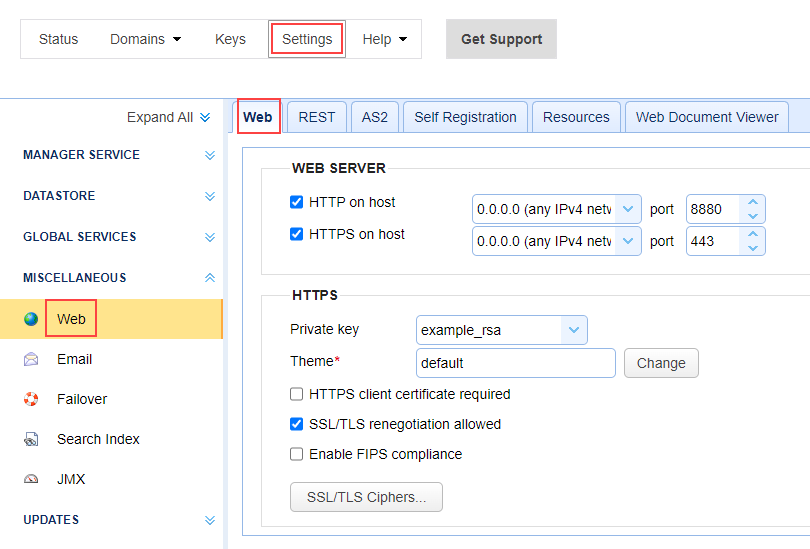

Settings > MISCELLANEOUS > Web > Web

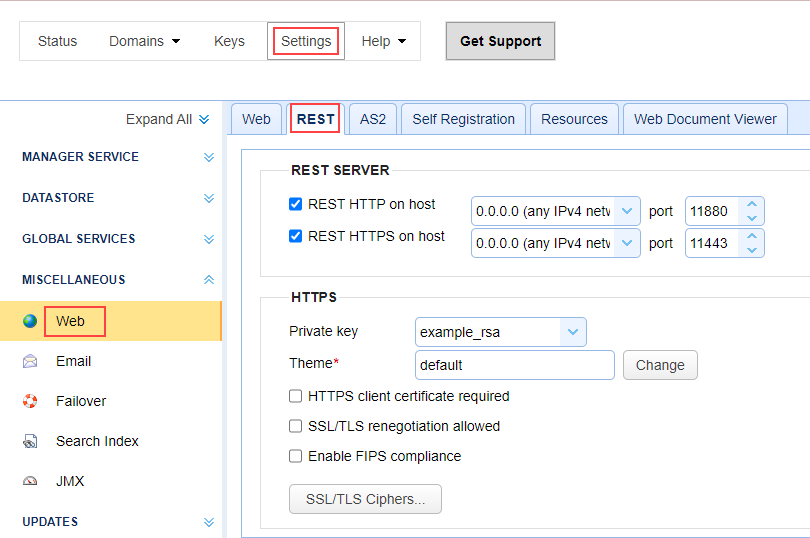

Settings > MISCELLANEOUS > Web > REST

The ports for HTTP and HTTPS are fixed and cannot be changed.

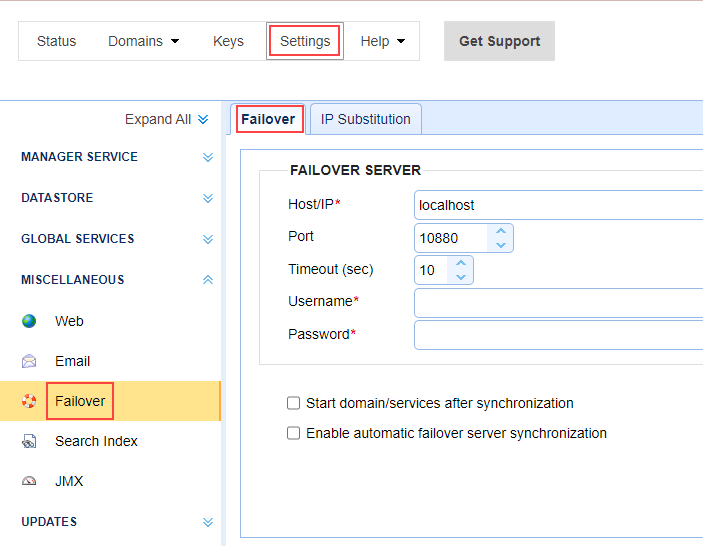

Settings > MISCELLANEOUS > Failover > Failover

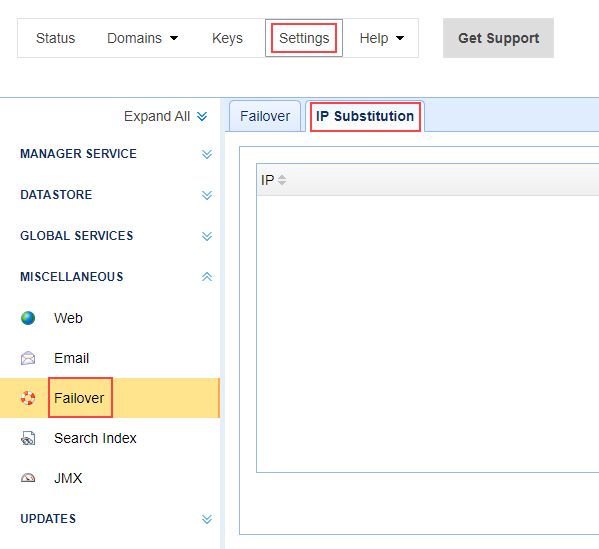

Settings > MISCELLANEOUS > Failover > IP Substitution

Settings > MISCELLANEOUS > JMX

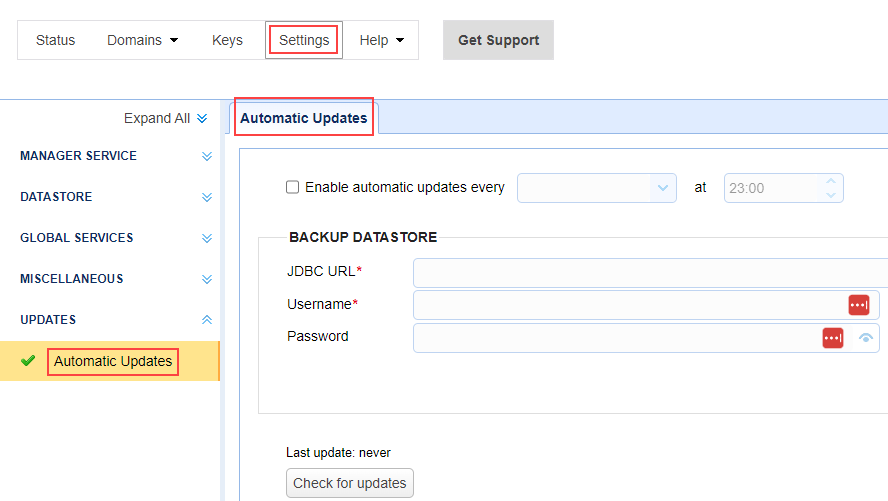

Settings > UPDATES > Automatic Updates - MFT Server software updates are managed by JSCAPE in a SaaS environment. Therefore, the option has been removed from the Admin UI.

Keys features

The (Global) Keys features are accessible through the Keys menu, shown in the image below.

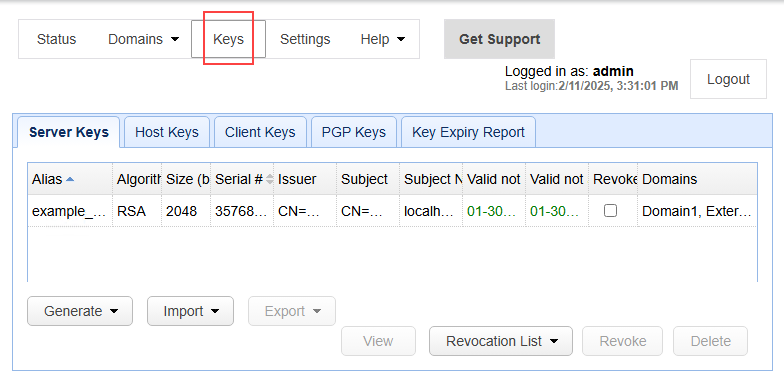

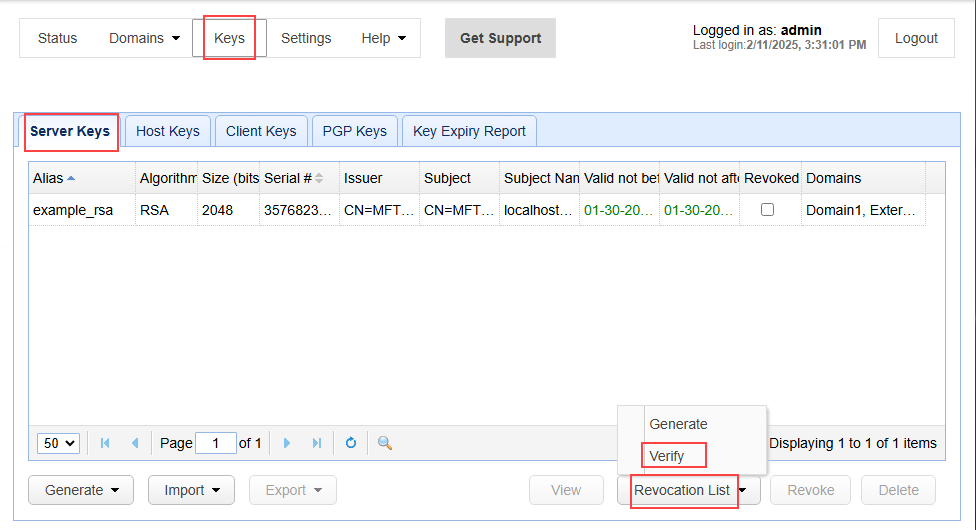

Keys > Server Keys > Verify > Revocation List

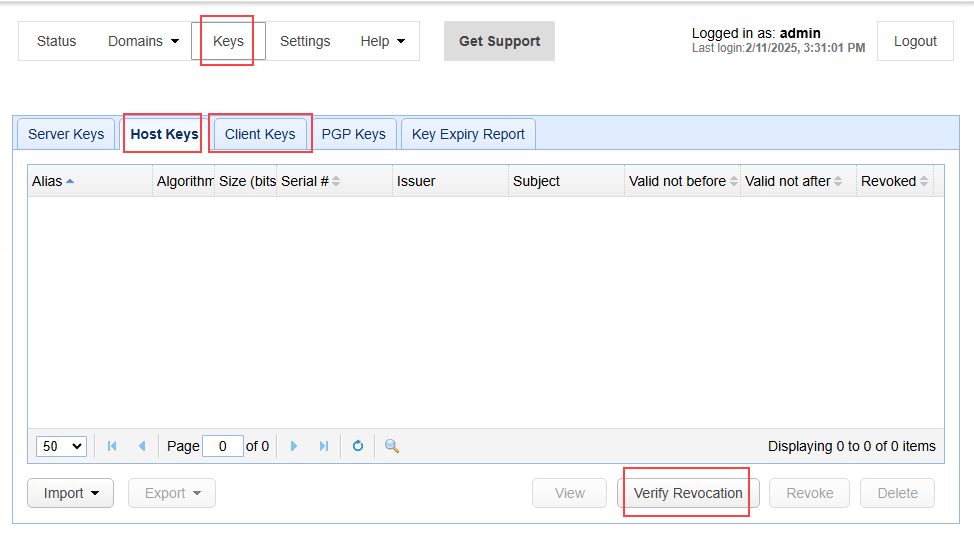

Keys > Host Keys and Client Keys > Verify Revocation

Web Client feature

My Storage > Upload - The ability to pause and resume a file that is actively being uploaded is not supported in JSCAPE SaaS.

Domain-level Images
