Trading Partner OFTP File Upload

This action uploads a file to an OFTP trading partner server. The OFTP Trading Partner type is supported in this action.





Parameters

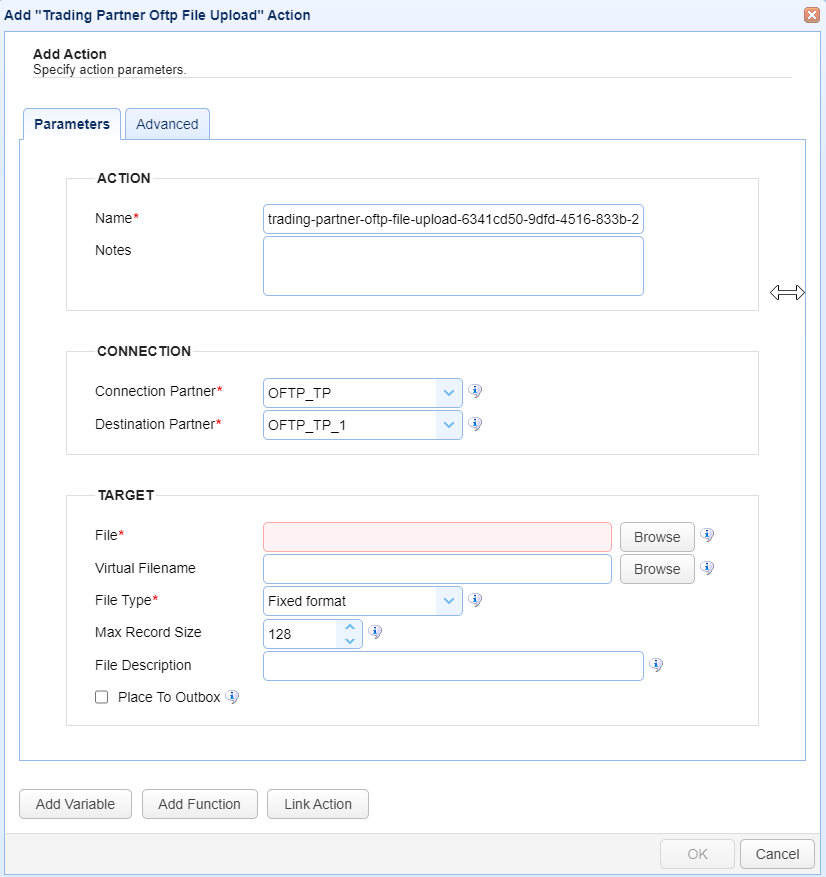

This section describes the fields on the Parameters tab.



ACTION

Name — Identifies the name of the Action. The system-generated default name, depicted in the image above, can be changed to a different name to suit your preferences. The Name must be unique within the current Trigger workflow.



Notes — Describes the action.



Tip: The values in the Name and Notes fields are displayed in a tooltip when you mouse over an Action node.



CONNECTION

Connection Partner - This field is the connecting trading partner server.



Destination Partner - This field is the destination trading partner server.



For both fields, a drop down list will display the trading partners created in AUTOMATION > Trading Partners that are compatible with this action. Select the desired trading partner from the list. The connection information that will be used is configured in the selected trading partner (for example, hostname, port, etc.).



TARGET

File - This field is the local file to upload.



Virtual Filename - This field is the OFTP virtual file name.



File Type - This field is the file type, which includes: Fixed format, Variable format, Unstructured, and Text.



Max Record Size - This field is the maximum file record size, specified in bytes.



File Description - This field is the description of the file.



Place to Outbox - This field, if checked, means that the file will be placed in the outbox and not sent.



Advanced

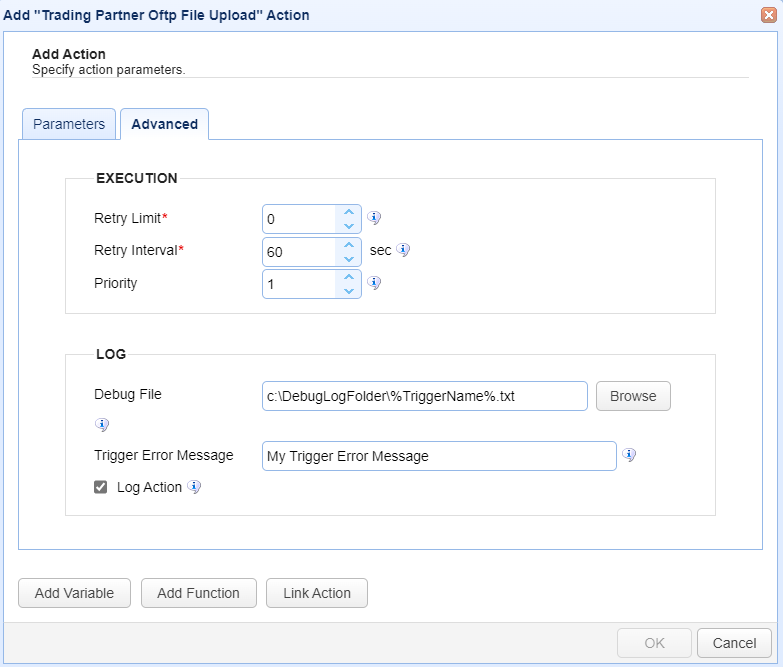

This section describes the fields on the Advanced tab.





EXECUTION



Retry Limit — Identifies the number of times a failed Action is retried before aborting the process.



Retry Interval — Identifies the number of seconds in between retries.

Priority — Identifies the Action’s priority. If concurrent Triggers Limiting number of concurrent triggers) and/or transfers are exceeded (Limiting number of concurrent transfers), then an Action may be interrupted by an Action with a higher priority. A value of 1 is considered the highest priority. The maximum value you can set is 1000.



LOG



Debug file — Identifies the complete file path where debugging information is saved during an Action's execution. The system logs information and errors for both successful and failed Actions.



  • The file can be located anywhere on the MFT Server system.

  • If the file does not exist, it is created, and debug information is appended to it.

  • If the file already exists, debug information is appended to the existing file.





It is recommended you specify a debug file name that will allow you to quickly identify which Action produced the file. If you would like the file name to match the name of your Trigger, use the built-in event variable %TriggerName%.



If you would like to use a new file each time the Action executes, you can append a date/time stamp the root of the file name.

Example: %DateFormat(CurrentDate(),"MM.dd.yyyy_H.m.s")%.txt. This will result in individual debug files each time an action is run, instead of using a single file that may grow overly large when it is repeatedly appended to.

Debug files are not purged by the system. To prevent too many files from growing unchecked, you can create a Current Time event Trigger, using a condition (e.g. DayofWeek = 5) to clean up the files at the time specified using a Delete Files Action. See Using time based triggers.

If you plan on using a single directory on the MFT Server to store all the debug files, you can create a global variable in Triggers > Settings and reference that variable in the debug file name.

Example: %GetGlobalVariable("DirName")% where DirName consists of a directory name. If the location of the directory should ever change, you can update the value of one global variable to reflect the change.

See below an example debug file name that uses all the file naming tips described in this section.



Example: %GetGlobalVariable("DirName")%%TriggerName%%DateFormat(CurrentDate(),"MM.dd.yyyy_H.m.s")%.txt, where the DirName global variable is equal to C:\MFTServerDebugFiles\.

Trigger Error Message — Used when a Trigger Action fails. The two uses are described below.



The Trigger Error Message is displayed in the Trigger Error column of the Action history (Triggers > History > View).



  • If you create an error-handling Trigger, the Trigger Error Message is passed to the error-handling Trigger.

  • An error-handling Trigger is a distinct Trigger that uses the Trigger Error Event type, as selected in the Trigger > Parameters dialog.

  • If a Trigger Error event occurs, the Trigger Error Trigger runs.

  • The Trigger Error Message is accessible in the Trigger Error Trigger as a variable named TriggerErrorMessage.

The image below depicts the Trigger Error Message displayed in the history of a failed Trigger Action.





The image below depicts selecting the Trigger Error Event type which is used to handle Trigger errors.





The image below depicts a Trigger Action (part of the Trigger Error Trigger workflow) accessing a Trigger Error Message. This is accomplished using the TriggerErrorMessage variable. To reference built-in variables, enclose the variable name in percent signs (%).





As a practical use case example, you can reference the Trigger Error Message in the body of an Email Action that is part of the Trigger Error workflow. The email alerts interested parties that a Trigger Action failed.



Log Action — When selected, Trigger Action records are added to the Domain > AUDIT > Logging module. The state of the Action is included, such as action started, action completed, and action failed. When unselected, Action records are not added to the Logging module. However, the Trigger itself is still logged.



Buttons

Add Variable — Displays a list of built-in event variables for you to choose from. Each Trigger has several event variables that you can use in one or more of the Trigger Action fields. When a variable is selected from the list, it is added to the Action field that is currently active. Built-in event variables are enclosed using the percent sign (e.g. %DomainName%).



In addition to using built-in variables, you can also specify a user-defined global variable, created in AUTOMATION > Triggers > Settings. To reference a global variable (Defining global variables), use the %GetGlobalVariable% function.



Example: %GetGlobalVariable("DirName")% retrieves the global variable named DirName. When using global variables, specify the variable name enclosed in quotes, as depicted in this example.



Add Function — Displays a list of built-in functions for you to choose from. Functions are useful when you want to format or parse a Trigger event variable. When a function is selected from the list, it is added to the Action field that is currently active. For more details about functions and their usage, see Function types.



Link Action — Displays a list of Actions for you to choose from. When an Action is selected, the Action ID is returned.



An Action ID (a string of alphanumeric characters) is used as an input parameter in the GetActionResult function. This function returns the results of a previously executed Action in the current Trigger workflow. This means that Action results can be passed to a linked (following) Action.



Note: The GetActionResult function also supports using the Action Name as an input parameter. This is an enhancement added in a more current version of MFT Server.

Using the Link Action button

  1. Select a field in the Trigger Action that you want to populate using the results of a previous Action.



  2. Click Add Function. A list of functions displays.



  3. Select GetActionResult(actionId). The field displays %GetActionResult(actionId)%.



  4. Highlight the word actionId in the field.



  5. Click Link Action. A list of Actions displays.



  6. Select an Action. The actionId text is replaced with the Action ID.

Example: The GetActionResult function looks similar to this: %GetActionResult("bee7cd8b-8021-4e19-8f76-1ae382e60c9d")%
